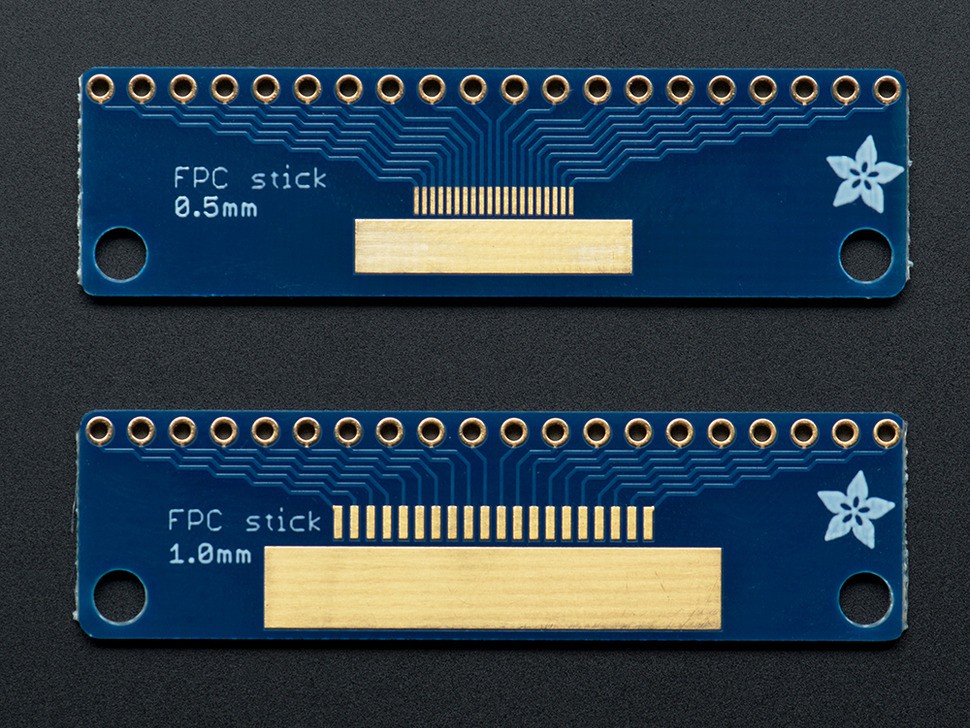

Connect to 0.5mm, 1.0mm and even some 2.0mm pitch connectors that you may run across with an FPC stick. This was designed for quick connection to FPCs that were needed for testing. But was thought to be useful for the public. On either side is a 20 pin 0.5 or 1.0mm pitch connector with long pads and one very long 'mechanical' pad. Each pad is broken out to a 20-pin long 0.1" spaced header. It can accommodate most ZIF and snap connectors and will make prototyping much easier on you!
Each order comes with a single double-sided PCB stick (one side 0.5mm the other 1.0mm), no header or other connectors included.
- Dimensions: 13.98mm / 0.55" x 50.85mm / 2"
- Weight: 2.10g
- 1.0mm pitch side dimensions
