- Description
-
Details
While A10/A20-cubieboard very suitable for student, software/hardware hackers, A20-cubietruck is suitable for us to make real product.

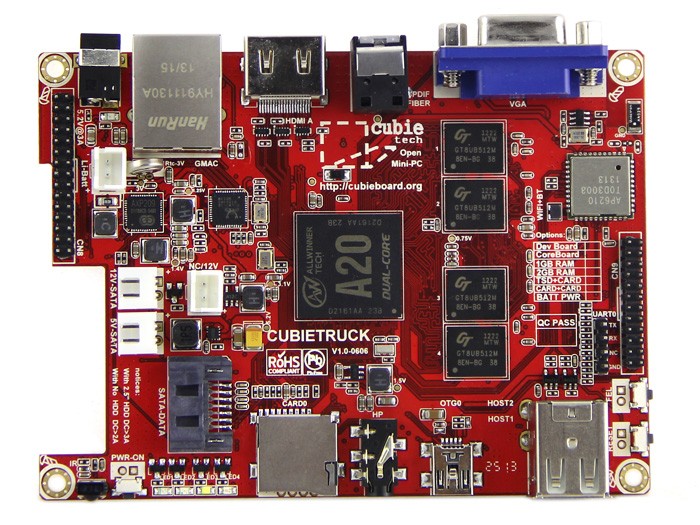

Cubietruck is the 3rd board of Cubieteam, we also name it Cubieboard3. It's a new PCB model adopted with Allwinner A20 main chip, the same with Cubieboard2. But it is enhanced with some features, such as 2GB memory, VGA display interface on-board, 1000M NIC, WIFI+BT on-board, support Li-battery and RTC, SPDIF audio interface.Features- Allwinner Tech A20 SOC
- SATA supported
- 54 extended pins
- Built-in HDMI/ VGA display interface
- Built-in WIFI+BT module
- 2GB DDR3 RAM
- Built-in IR receiver
- SPDIF audio interface
Specifications- Allwinner Tech SOC A20 ARM® Cortex™-A7 Dual-Core ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
- 2GB DDR3@480MHz
- HDMI&VGA 1080P display output on-board
- 10M/100M/1G Ethernet
- WIFI + BT wireless connection with antenna on-board
- SATA 2.0 interface support 2.5’ HDD (for 3.5’ HDD, only need another 12V power input)
- Storage solution NAND + MicroSD
- 2 x USB HOST, 1 x OTG, 1 x SPDIF, 1 x IR, 4 x LEDs, 1 x Headphone, 3 x Keys
- Power [email protected] with HDD support Li-battery & RTC
- 54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWM x2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVIN x4 with 2.0 pitch connectors
- PCB size 11cm *8cm*1.4mm
- Operating temperature: -10℃ ~ 70℃.
Includes- Cubietruck main board x1
- SATA 2.0 cable x1
- Mini USB to OTG x1
- Mini USB cable x1
- USB to 1.7 mm DC jack cable x1
- Acrylic shell x1
- Ultrathin Heat Sink x1
Cubieboard A10 Cubieboard A20 Cubietruck Size 10cm x 6cm 10cm x 6cm 11cm x 8cm CPU Cortex-A8 Cortex-A7 Dual-Core Cortex-A7 Dual-Core CPU Clock Frequency 1GHz 1GHz 1GHz RAM 1GB DDR3 1GB DDR3 2GB DDR3 Flash/NAND 4GB 3.4GB 2GB WIFI/Bluetooth N/A N/A On-board SATA SATA 2.0 SATA 2.0 SATA 2.0 RTC N/A N/A Li-battery and RTC on-Board GPIO 96 extend pins 96 extend pins 54 extended pins USB Host/OTG 2xUSB 2.0/ 1xMini USB 2.0 2xUSB 2.0/ 1xMini USB 2.0 2xUSB 2.0/1xMini USB 2.0 Video Out HDMI HDMI HDMI/VGA Audio Out HDMI/ SPDIF/ Headphone HDMI/ SPDIF/ Headphone HDMI/ SPDIF/ Headphone OS support Linux/Android Linux/Android Linux/Android Documents- Install Lubuntu
- Install Android
- Install Fedora
Software- Images for Cubietruck(A20) (The linaro’s usrname and password should be linaro/linaro)
- More software download from Cubieboard download website
