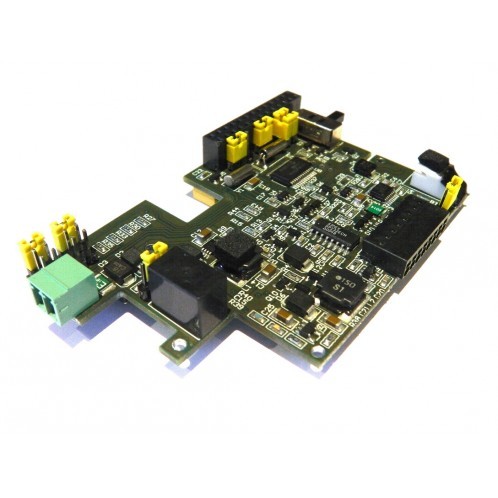

The UPiS is an Intelligent Uninterruptible Power Supply designed specifically for the Raspberry Pi. The UPiS

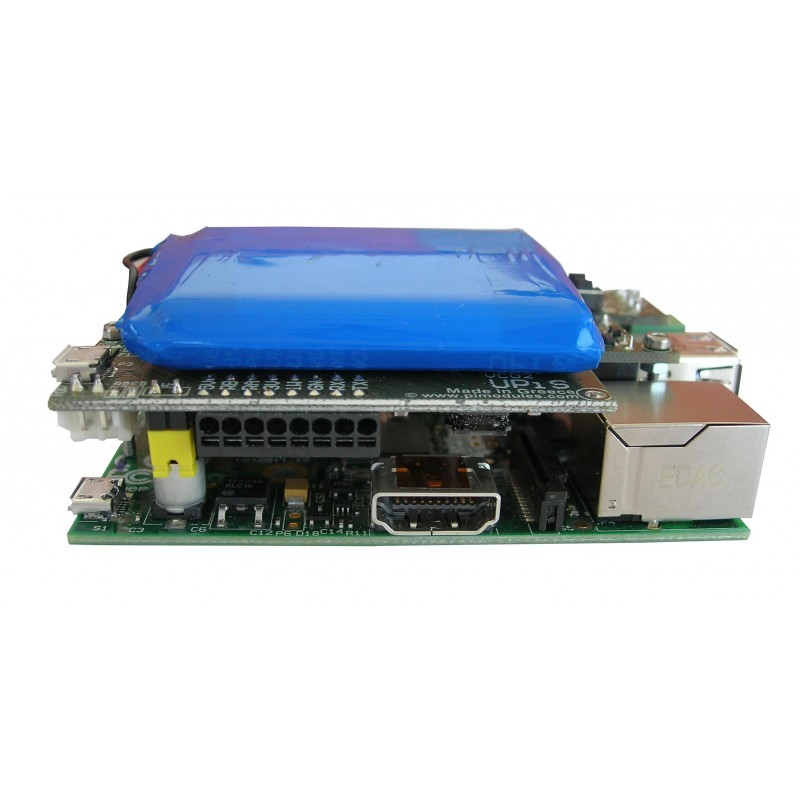

Advanced is equipped with a 2600mAh LiPO battery (included) meaning it can keep your Pi alive for over 5 hours if the power fails! There is no need for any additional cabling or Power Supply, as the UPiS is powered by the same Power Supply of your original Raspberry Pi; you simply insert the UPiS on the top of the P1 connector of your Raspberry Pi and plug your power supply into the UPiS module! The UPiS Module has a built-in smart battery charger, which controls and charges the integrated battery automatically whenever your RPi is cable-powered. The UPiS Advanced includes a host of other features including on-board Real Time Clock (RTC), NO Relar Sensor, Protected 1-Wire Interface, Micro USB to RPi RS232 Interface (Virtual Com Port) and 12V RS232 Interface.
A full list of features for the basic and advanced versions can be found here.

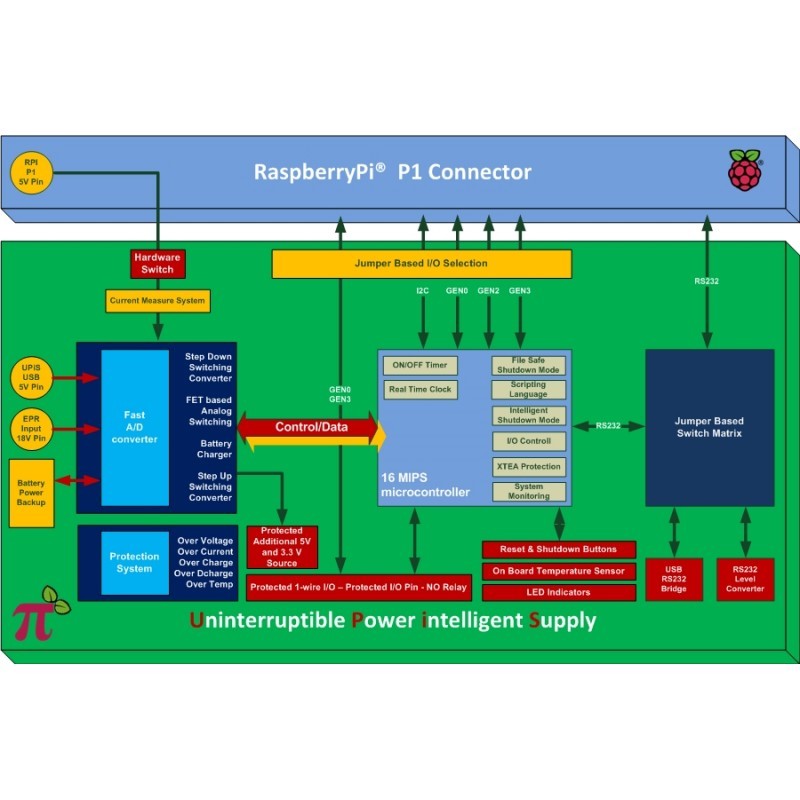

The UPiS has an embedded measurement system that continuously checks the powering voltage and current consumption, and when the cable power is absent or insufficient, it automatically switches to the battery source. Then it keeps checking the input voltage on all power sources, and when cable power gets available again, it switches to it automatically, turning the battery source off and recharging it for when the power fails again. The UPiS uses exactly the same micro USB Power Supply that you are using to supply your Raspberry Pi, however it has also an Extended External Voltage input for other non-standard powering sources.
The UPiS is addressed to all users requiring a power back-up and/or sensing features for applications running on the Raspberry Pi. All applications running on the Raspberry Pi can take advantage of the uninterruptible power supply feature of the UPiS (ranging from Raspberry Pi based fan less servers to solar-powered applications), but in addition the UPiS provides a wealth of sensors and features, all cumulated in a single all-in-one unit, that can enable writing many innovative applications.
Features:
-
2600mAh LiPO battery
-
Automatic battery charger
-
LiPO Battery Protection
-
Resettable Fuse on each powering input
-
Embedded Real Time Clock controlled via RS232 interface and I2C.
-
Time programmed ON/(file safe) OFF switch for the RPi
-
RPi system Watch-Dog timer
-
Protected 1- wire interface
-
Protected digital I/O pin
-
Embedded on the board analog temperature monitor independent from the 1-wire
-
interface – accessed via RS232
-
NO Relay controlled via RS232 interface or RPi
-
True 12V RS232 interface to the external world
-
Additional USB interface for the RS232 I/O pins (based on FTDI chipset)
-
Additional resettable fuse protected power source of 5 VDC and 200 mA
-
Software controlled file safe shutdown switch
-
Scripting language for timed shutdown or switch on
-
Full monitoring via RS232 for all power sources and battery level
Support:
Full Feature List - UPiS Advanced
-
Supervised and Protected Powering from all cable sources
-
Raspberry Pi micro USB (5 VDC)
-
Additional micro USB (5VDC)
-
Extended External Powering Input (7 VDC – 18 VDC)
-
Battery Power Backup on each cable powering source (including original Raspberry Pi micro USB – optional after firmware activation)
-
Onboard Rechargeable LiPO Battery (2600 mAh) – battery working time is about 5 hours and depends to the system load and configuration
-
Onboard enhanced multiple level protection system for the LiPO battery:
-
Cut-off jumper
-
PTC fuse
-
Onboard Thermometer
-
Over-charge and Over-discharge protection
-
Over-voltage and Under-voltage protection
-
Onboard Intelligent Automatic LiPO Battery Charger (Charges the battery automatic and only if supply power is enough to supply Raspberry Pi and charge battery)
-
Raspberry Pi Hardware ON/OFF Switch
-
Embedded Emulated RTC (Real Time Clock – DS1307) accessible via Raspberry Pi I2C and/or RS232 supplied from the System LiPO battery
-
Onboard Analog Thermometer (accessible via Raspberry Pi RS232)
-
Onboard True USB interface (RS232 – USB Bridge)
-
Programmable Time, Raspberry Pi File Safe Shutdown Button (if the Raspberry Pi is powered from the second micro USB placed on the UPiS board)
-
Full monitoring overall UPiS Powering Parameters via Raspberry Pi RS232 port:
-
Current Consumption
-
Voltage on each Power source
-
System Temperature
-
Battery Level
-
Powering source
-
RTC based programmed Startup/Shutdown
-
Onboard UPiS Reset Button (resets UPiS, Raspberry Pi and RTC by cutting the powering for a very short time)
-
Onboard NO RELAY controlled via RS232 or Raspberry Pi Pin (selectable by jumper GPIO_GEN0)
-
Onboard ESD Protected 1-wire interface controlled via RS232 or Raspberry Pi Pin (selectable by jumper GPIO_GEN3) with separate 3.3V supply
-
Onboard ESD Protected I/O pin controlled via RS232 or Raspberry Pi Pin (selectable by jumper GPIO_GEN3)
-
Onboard True 12 V RS232 interface to the external world (with level converter)
-
Protected 5 VDC output for user applications (Resettable fuse 140 mA) with battery backup feature
-
Not Protected 3.3 VDC output for user applications (usually used for 1-wire application) separated and independent from the Raspberry Pi 3.3 supply.
-
Extended Tiny Encryption Algorithm (XTEA) cryptographic Customer Software Protection System (with custom defined protection key)
-
Scripting language
-
LEDs Status Information System
-
Bootloader feature for a lifetime firmware update
